Citronic D Series Class-D Power Amplifier
About this product

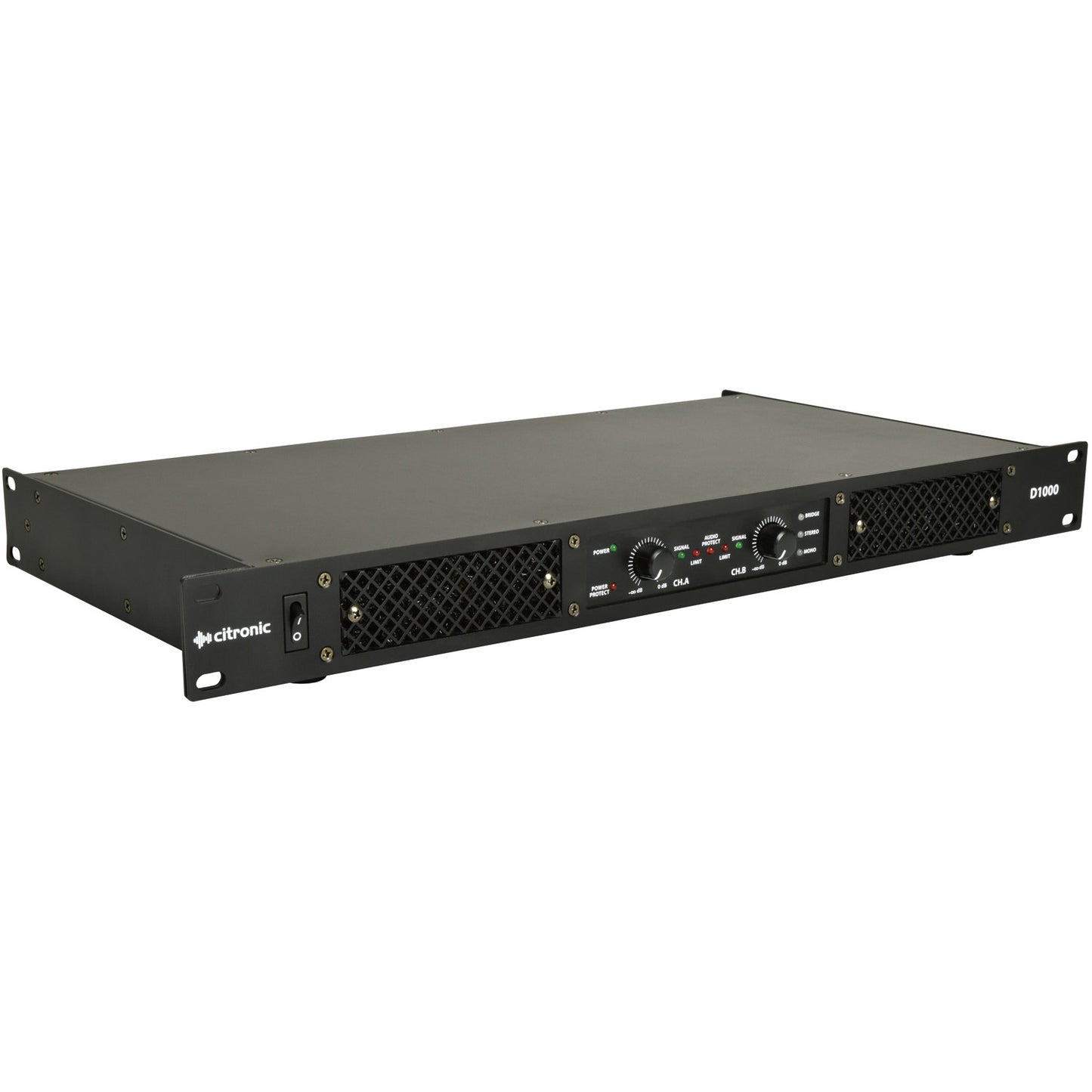

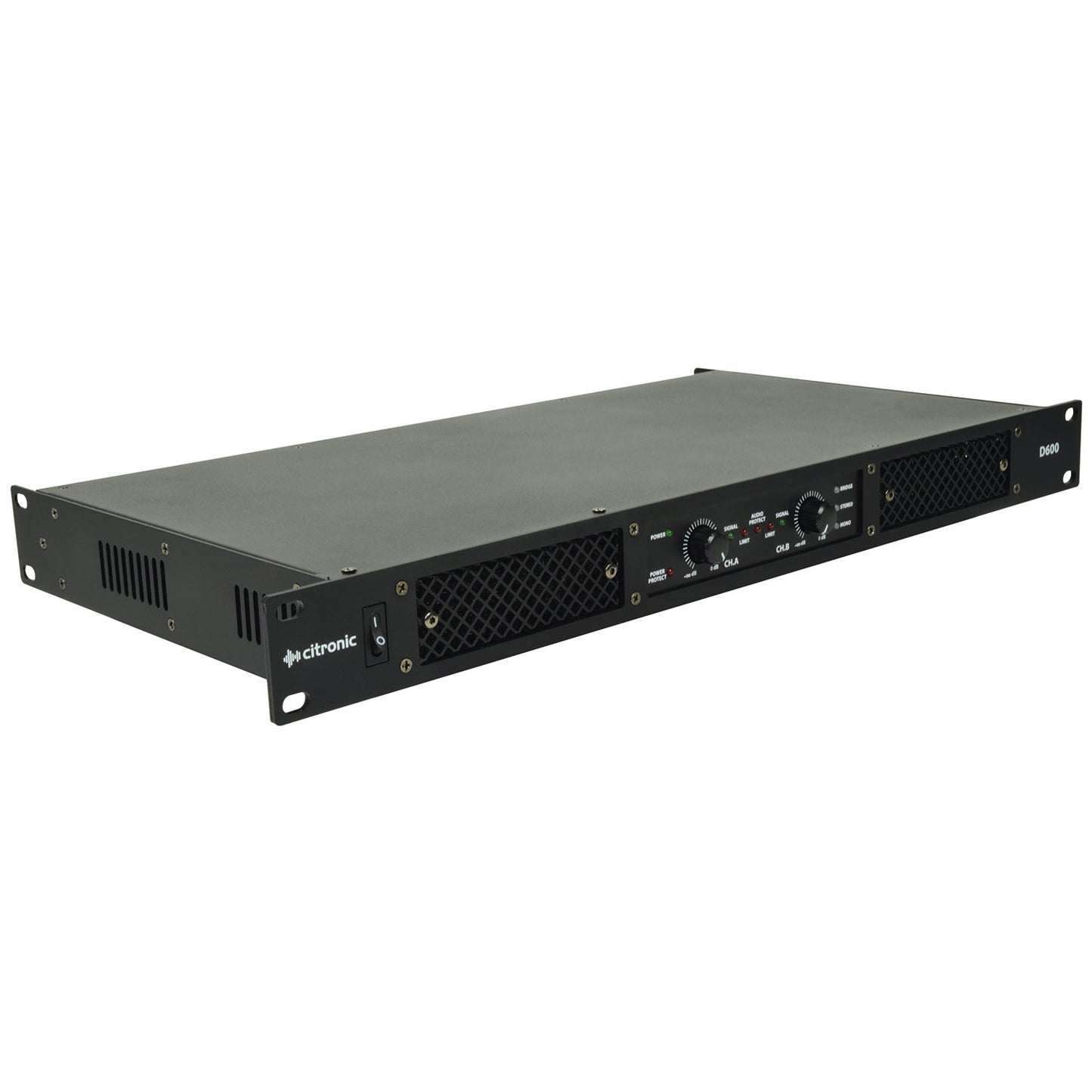

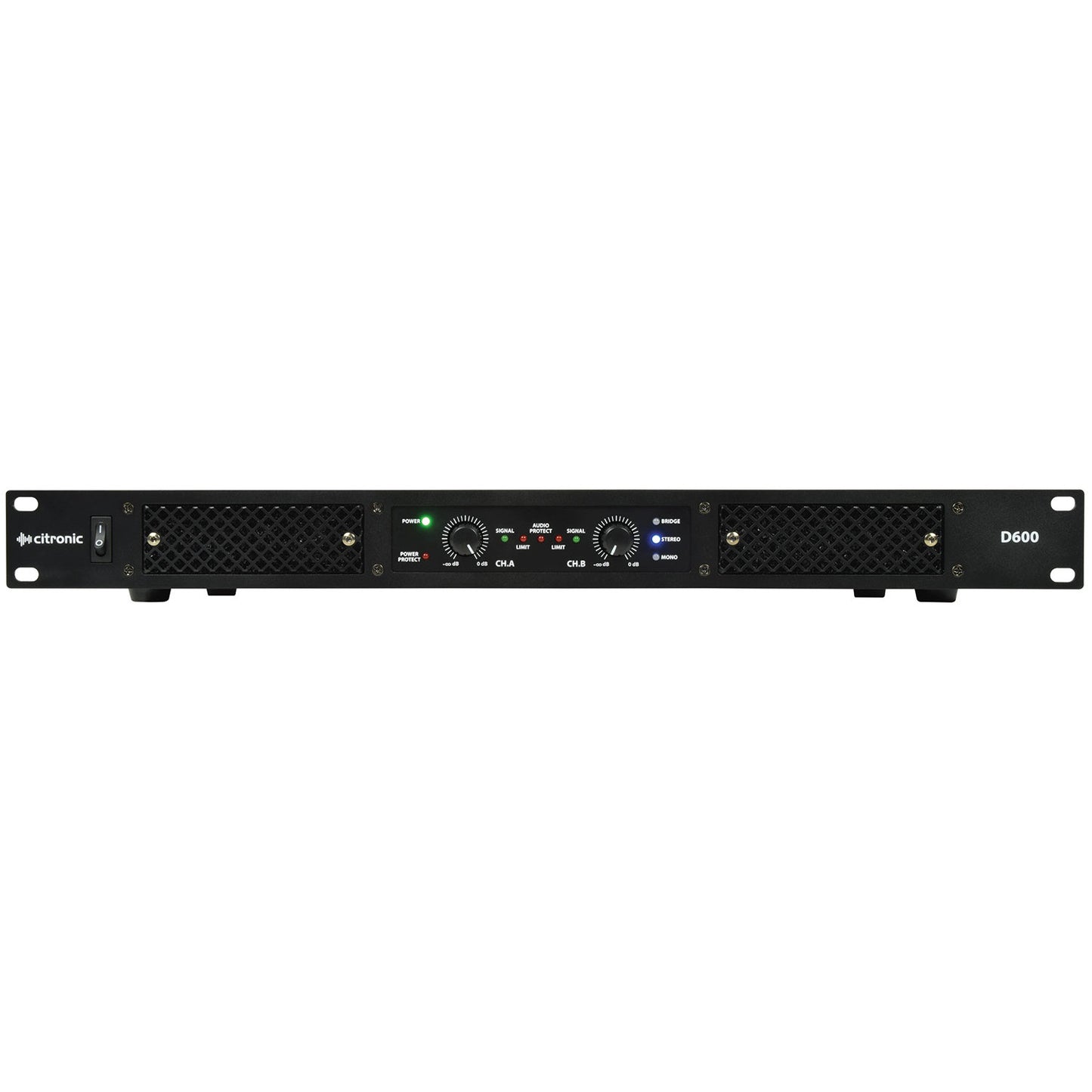

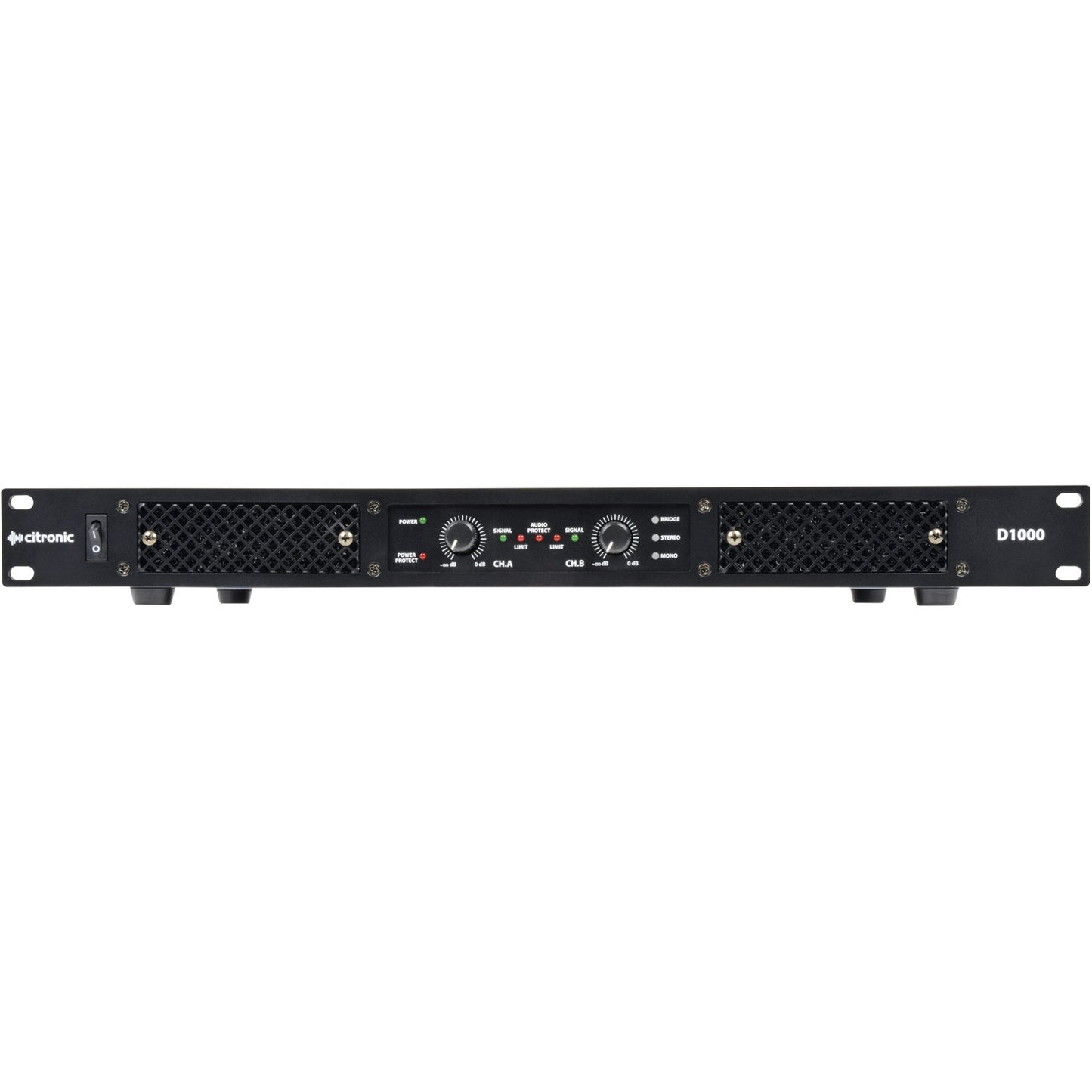

The Citronic D Series Class-D Power Amplifier is a stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different configurations to handle even the most demanding of sound reinforcement duties.
Cool and efficient operation even at high output
Compact and lightweight 1U rack format
Switchable parallel and bridge modes
Specifications
Weight: 3.77kg / 3.93kg
Bridge power @ 8 Ohms: 1 x 600W / 1 x 1000W
Power RMS @ 8 Ohms: 2 x 150W / 2 x 250W
Power RMS @ 4 Ohms: 2 x 300W / 2 x 500W
Fuse: T8A (20 x 5mm) / T10A (20 x 5mm)
Power supply: 220-240Vac, 50/60Hz (IEC)
Modes: Stereo, Parallel (mono), Bridge (mono)
Input sensitivity: 0.775V - 1.0V - 1.44V switchable
Low-cut filter: 75Hz switchable

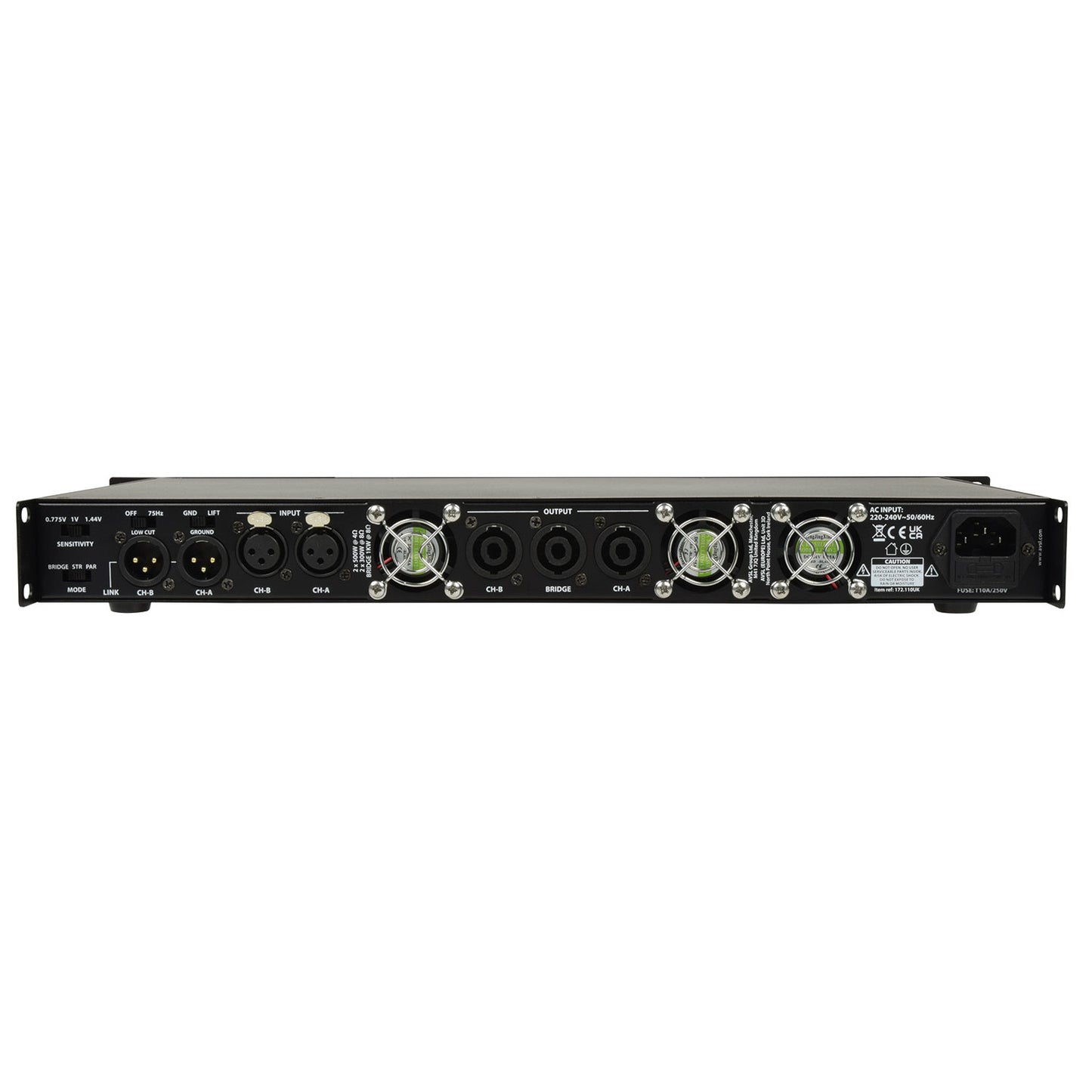

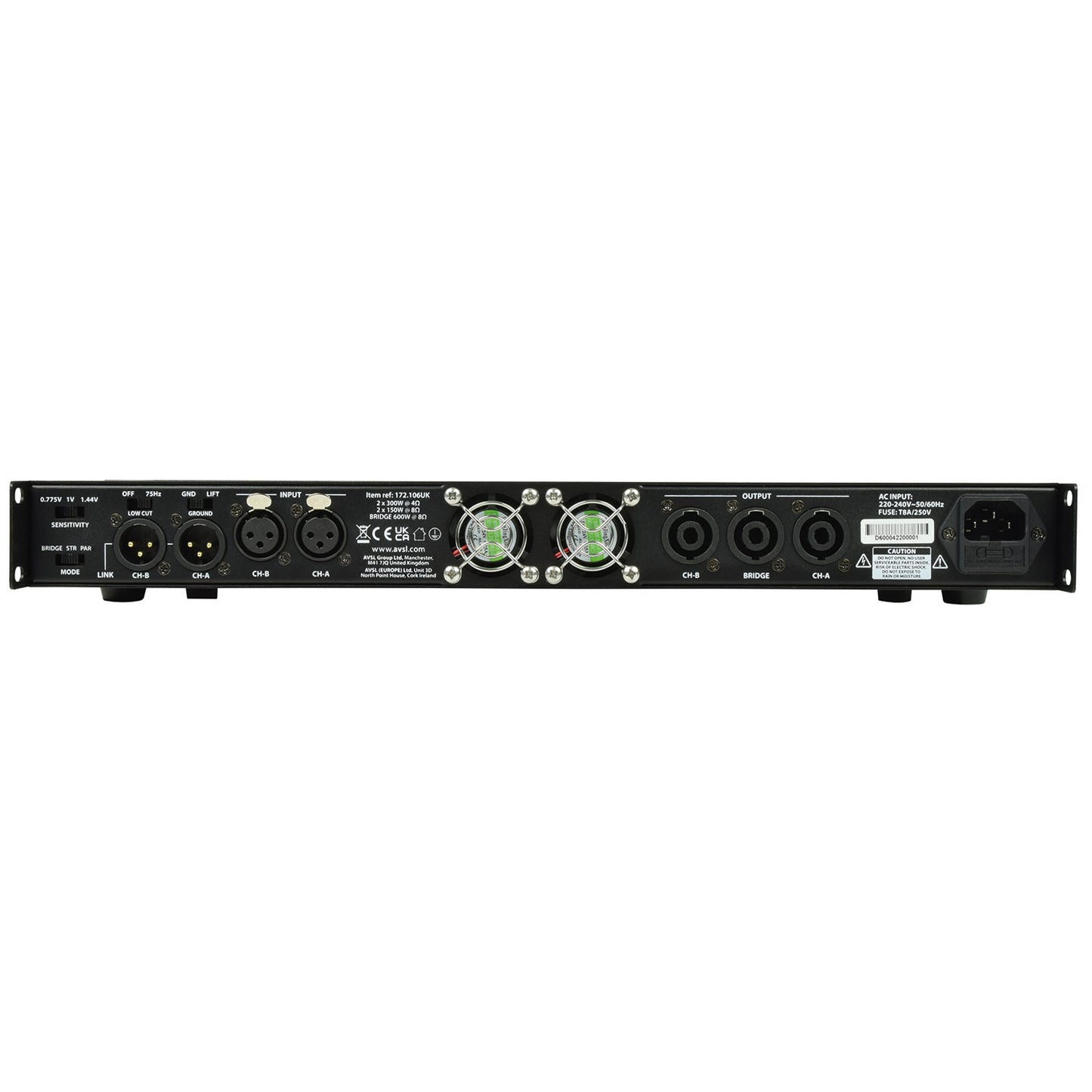

Input connections: L+R XLR female (L+R XLR male through)
Output connections: L+R SPK connectors (+1 for bridge mode)
Dimensions: 482 x 245 x 44mm
