Citronic DJ Mixer 2 Channel

About this product

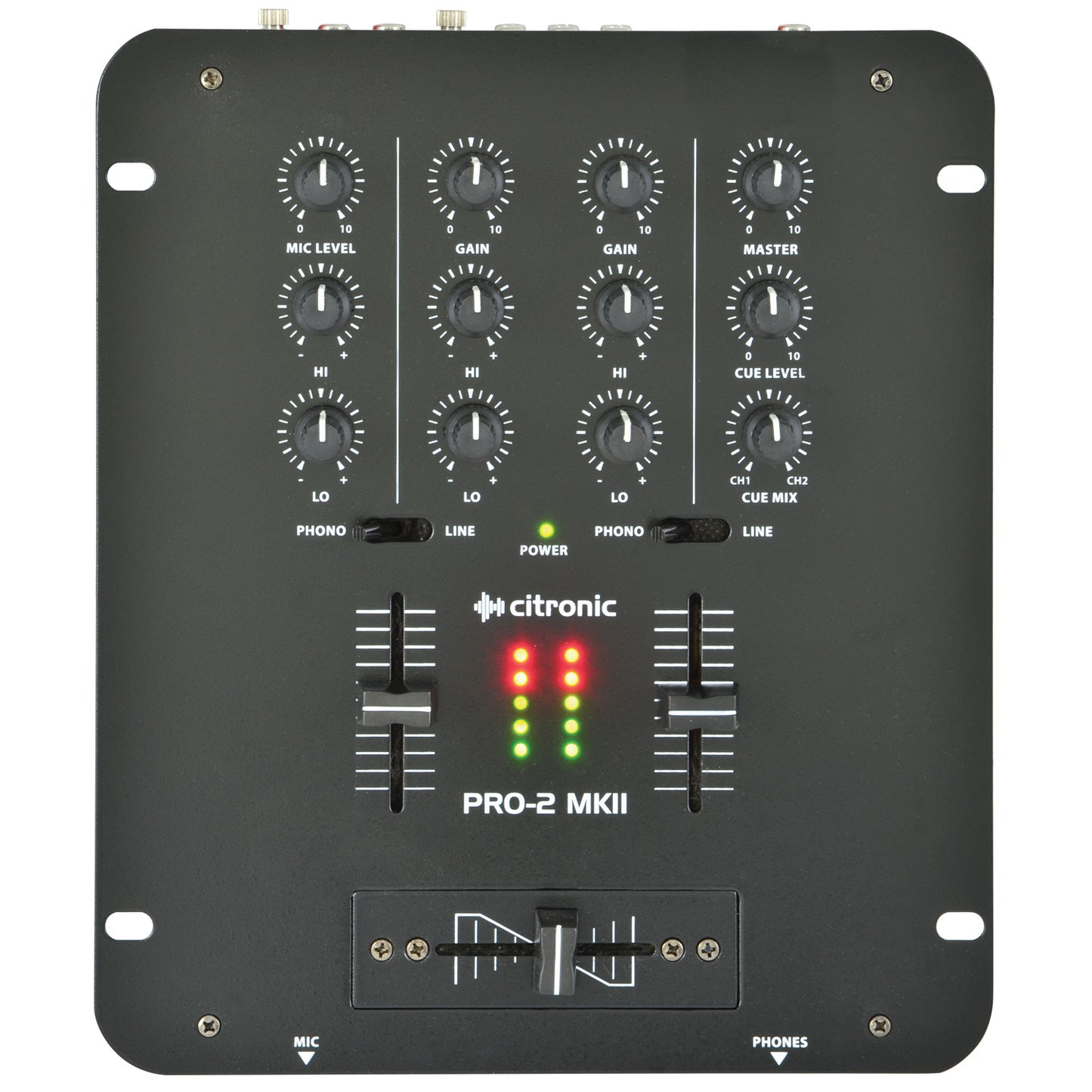

The Citronic DJ Mixer 2 Channel is a straightforward traditional two-channel mixer with a solid build quality and an uncluttered layout. It has high quality faders, sturdy rotaries and includes a dedicated microphone input with two-band EQ and level control. The monitor section features a rotary control to switch between channels 1 and 2 allowing the user to have a mix of both channels at the same time through the headphones.

2 channel, 5 input mixer - 2 phono, 2 line, 1 mic

Individual gain controls

2 band music EQ with up to 35dB cut per channel

Dedicated mic channel with 2 band EQ

Headphone cue mix

3-bar LED monitor

Easy glide replaceable crossfader

Specifications

Power supply: 12Vac, 500mA

Headphone output: 32 Ohms, 1.8V (>5dB)

Input (line): -13dB, 47k Ohms (±2dB)

Input (phono): -48dB, 47k Ohms (±2dB)

Input (DJ Mic): -53dB, 6k Ohms (±1dB)

Output (master): RCA 0dB, 470 Ohms (±2dB)

Output (headphone): -3dB/33 Ohms +5dB, ±2dB

Frequency response (line): 20Hz-20kHz ±2dB

Frequency response (mic): 20Hz-20kHz +2, -3dB

Frequency response (phono): 50Hz-20kHz ±1dB (RIAA)

EQ line (hi): +10/-30dB +2/-2dB @ 10kHz

EQ line (low): +10/-30dB +2/-2dB @ 100Hz

EQ mic (high): +12/-12dB +2/-2dB @ 10kHz

EQ mic (low): +12/-12dB +2/-2dB @ 100Hz

THD: >0.2%

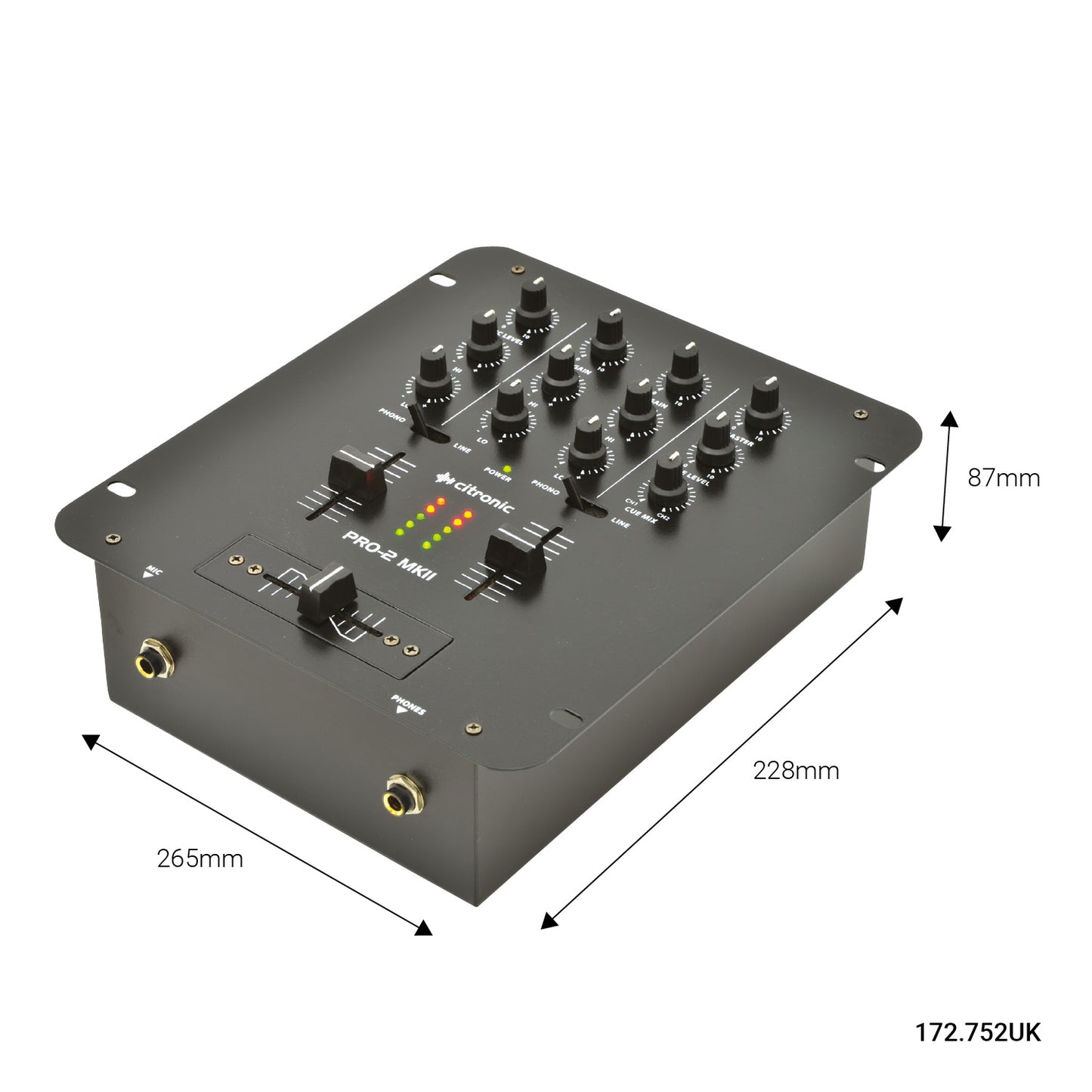

Dimensions: 228 x 265 x 87mm (6U)

Weight: 2.8kg
