AV Link 4K HDMI Multi-Viewer 4x1
MPN:
£79.99
£66.66 excl. VAT
Check your postcode
Enter a valid postcode.
credit account (subject to approval).

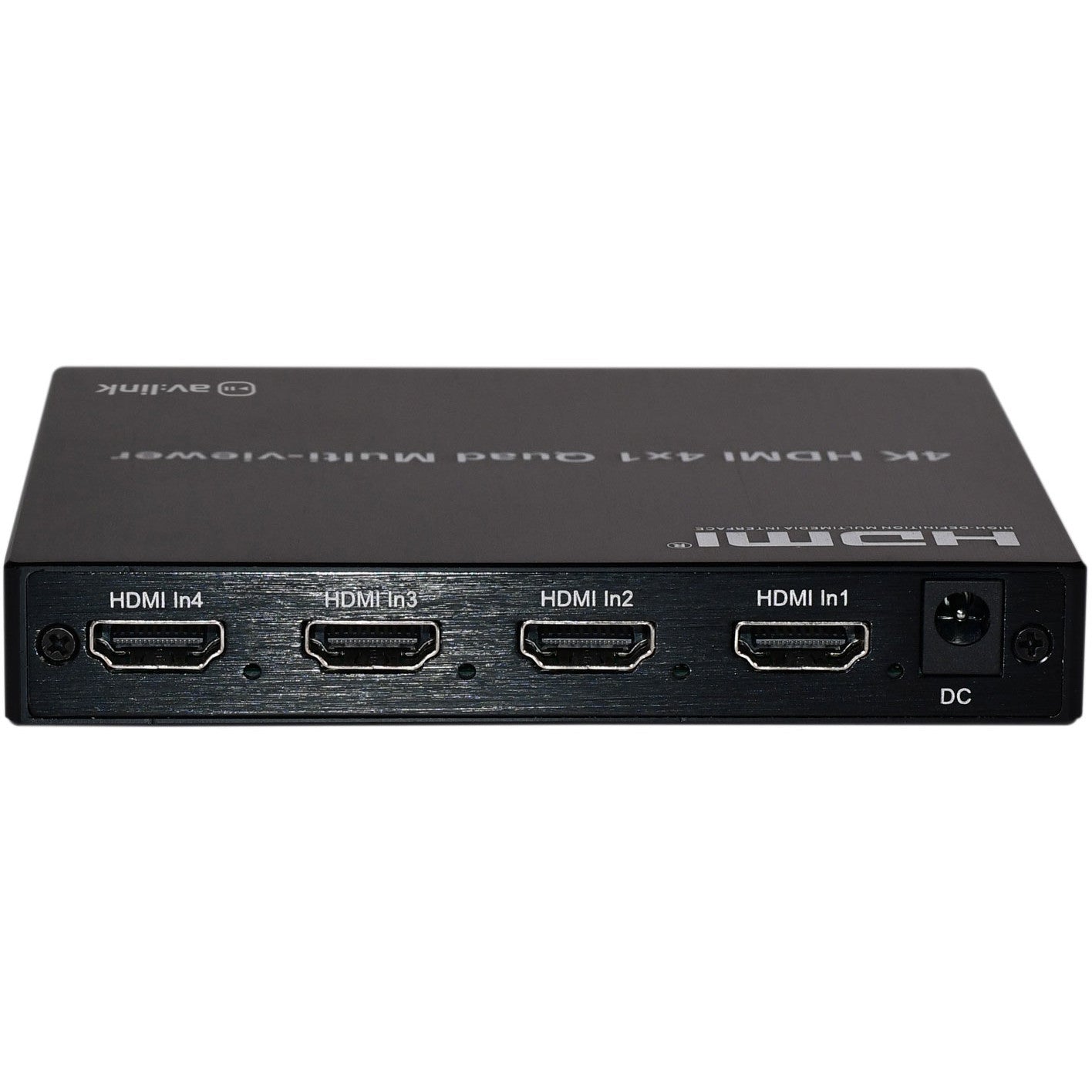

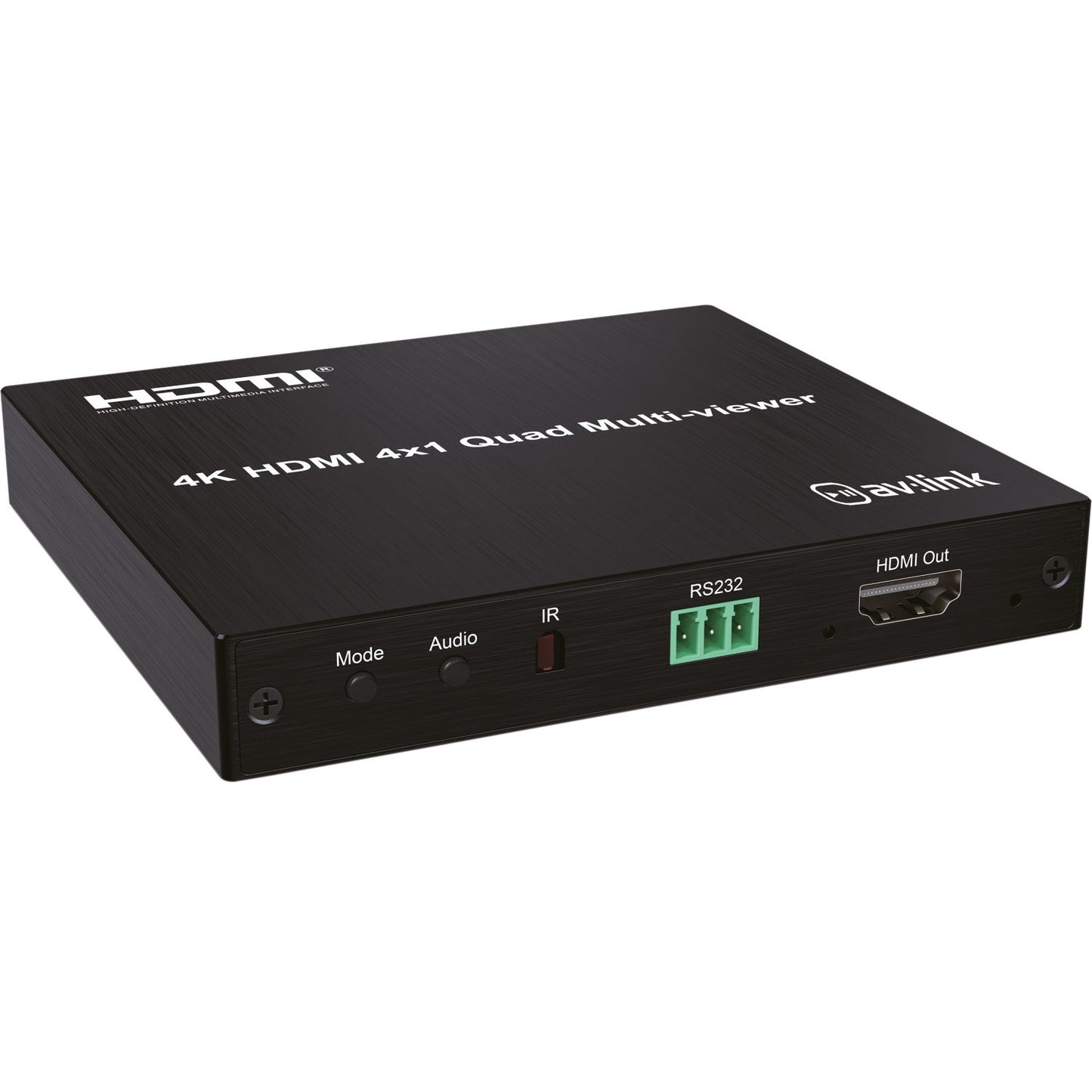

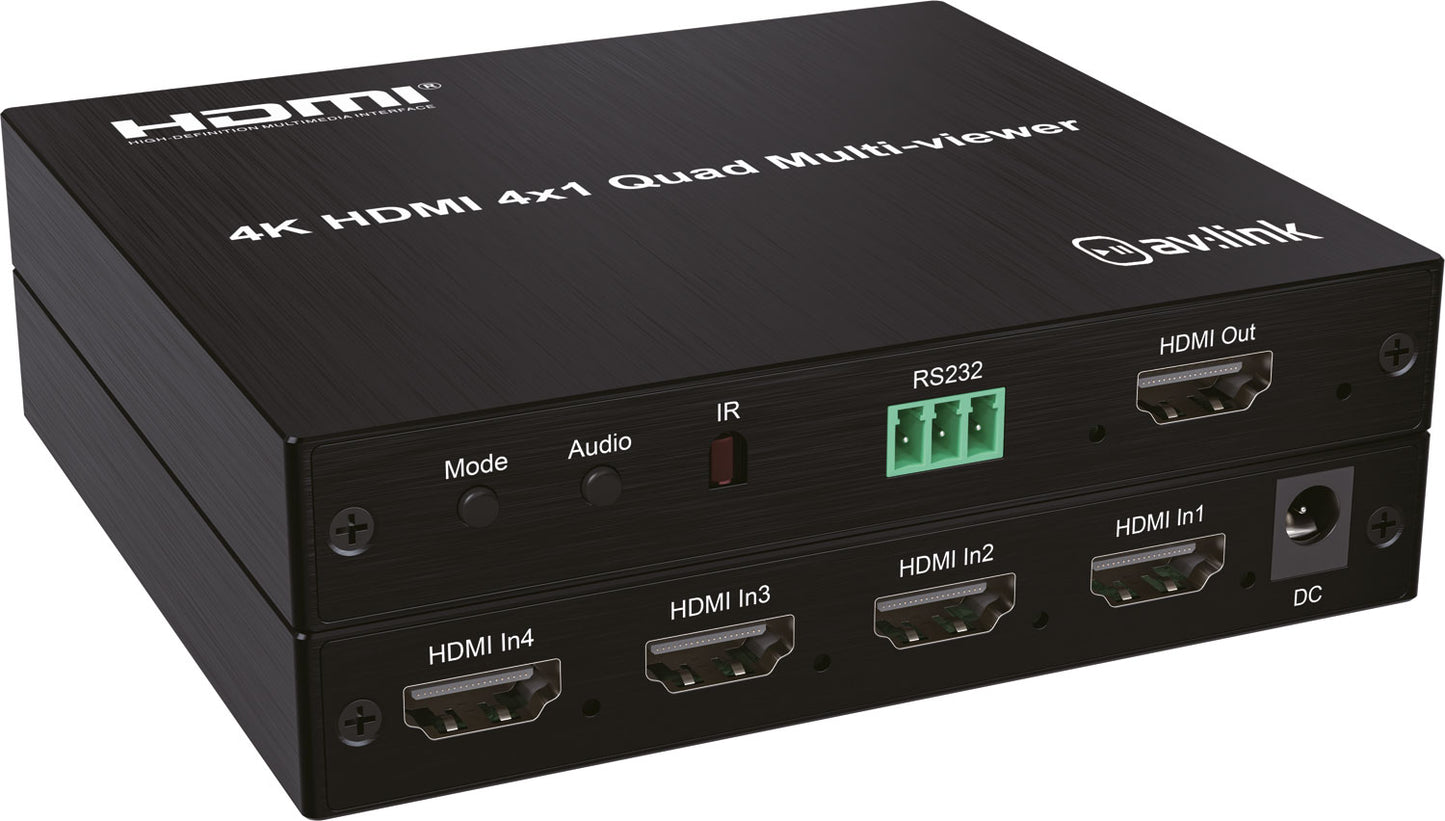

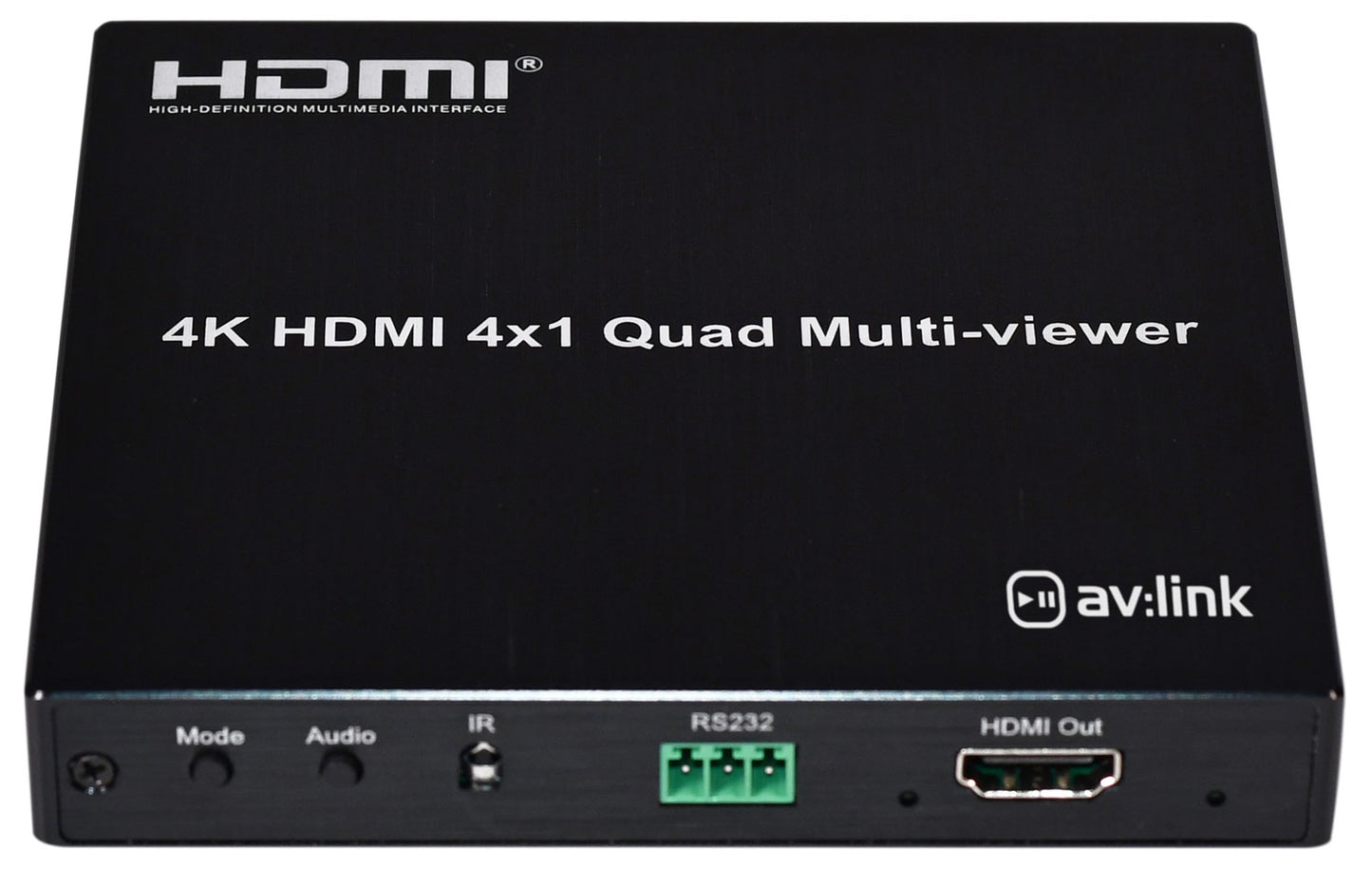

AV Link 4K HDMI Multi-Viewer 4x1
About this product
The AV Link 4K HDMI Multi-Viewer 4x1 allows up to 4 HDMI signals to be displayed and selected on a single HDMI output. The seven different display options provide various ways to view and monitor the inputs, making it ideal for CCTV and security applications. Simple setup, installation and control using the provided IR remote control or buttons on the unit, this versatile device can also be used for gaming, hospitality and entertainment applications where multiscreen switching is required.
Seamlessly displays and switches up to 4 HDMI inputs to a single HDMI output
Provides a number of display options ideal for CCTV and security applications
Simple setup and operation
Supports video resolutions up to 3840 x 2160 @ 30Hz
Attractive brushed metal finish

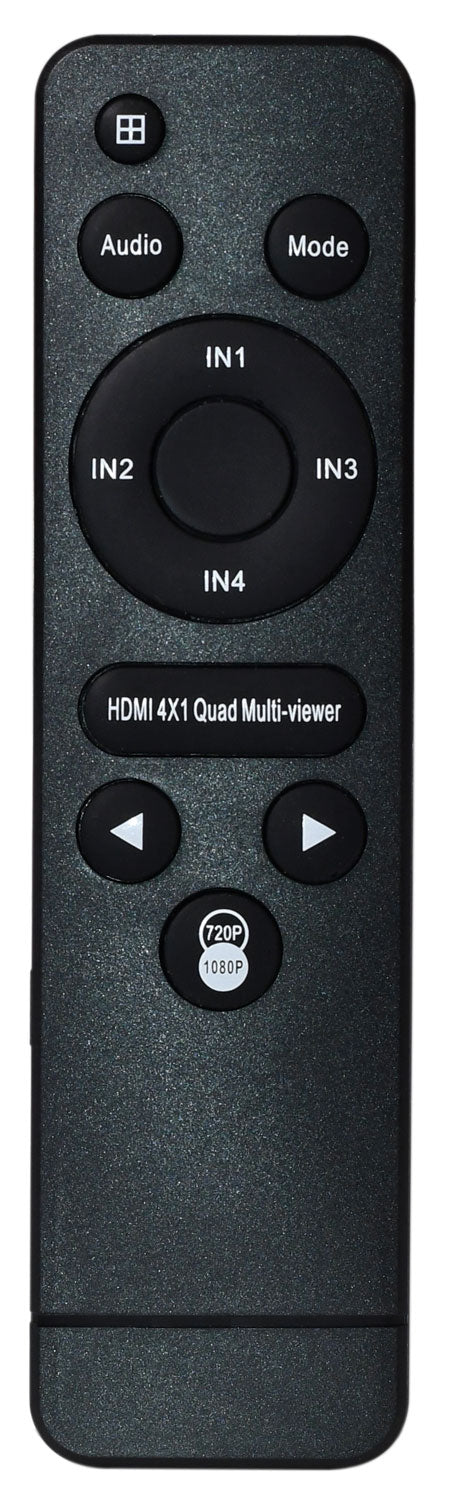

IR remote control and UK power adaptor supplied
Specifications
Max. resolution: 3840 x 2160 @ 30Hz
Audio format: LPCM2.0
Input connections: 4x HDMI, DC5V/1A (power)
Output connections: HDMI, RS232
Max. baud rate: 3.4 x 3Gbps
Max. bandwidth: 340Mhz
Max. cable length: Input: 4K/30Hz≤10m / Output: 4K/30Hz≤10m
Max. working current: 0.6A
Operating temperature range: -10°C to +45°C

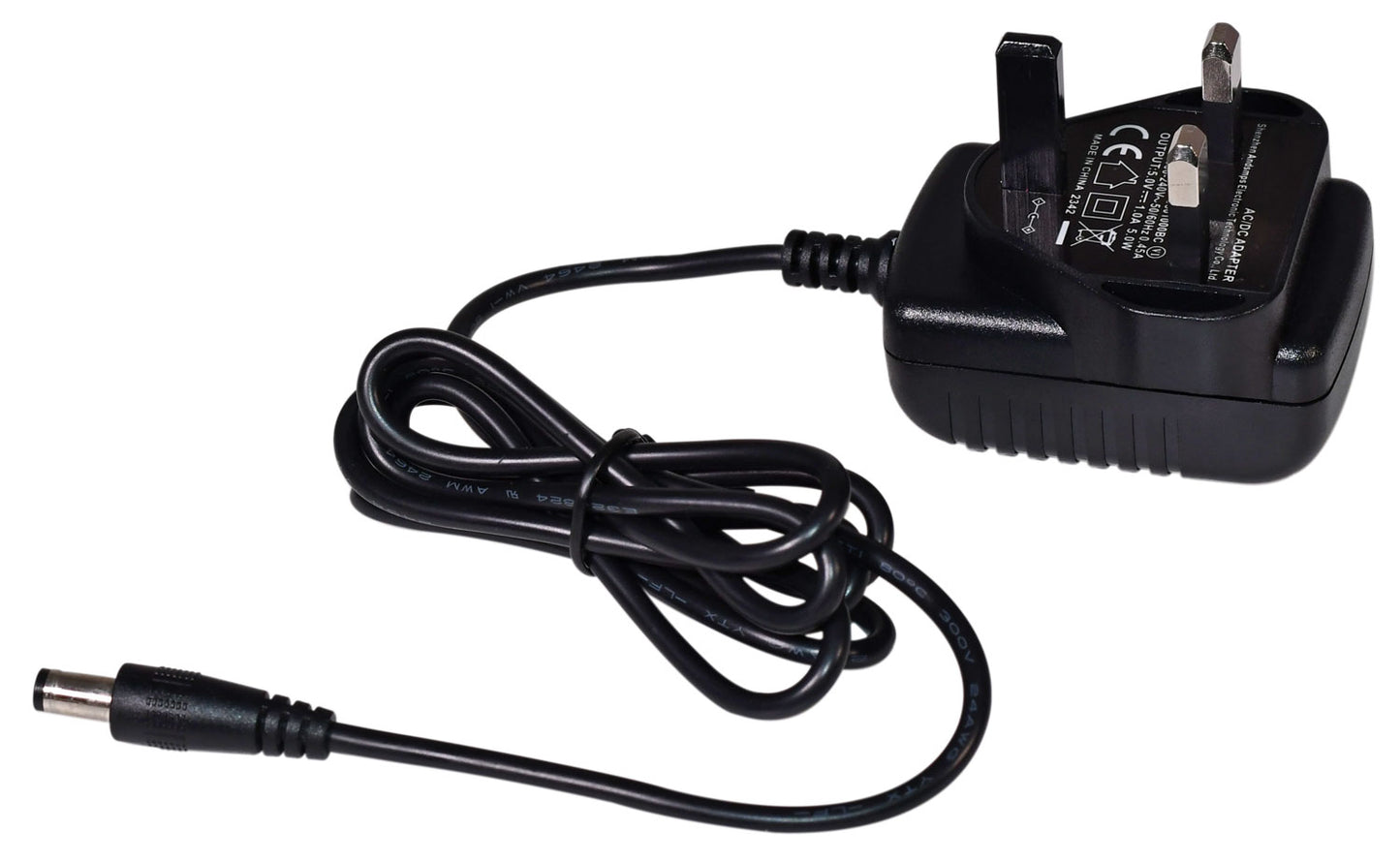

Power adaptor: Input: AC (50Hz, 60Hz) 100-240V / Output: DC5V/1A
Remote requires: 2x AAA (not supplied)
Dimensions: 121 x 102 x 19mm
Weight: 220g
