A Guide To Jack Plugs

A Guide To Jack Plug Sizes & Cables

Written by: Pete Luckhurst

|

|

Time to read 9 min

In the world of audio technology, jack cables and plugs are essential components that are used to connect various devices together. Whether you're a musician, audio engineer, or simply an enthusiast, understanding the basics of jack cables is crucial to ensuring a seamless audio experience. In this guide, we will explore everything you need to know about jack cables and plugs, from the different types available to how to choose the right one for your needs. So let's dive in and uncover the secrets behind these invaluable connectors.

Understanding the Basics of Jack Cables

Before we delve into the different types of jack cables, it is important to understand the basics of how they work. Jack cables consist of a plug, which is inserted into the corresponding jack socket, creating an electrical connection. This connection allows audio signals to be transmitted from one device to another.


One of the key features of jack cables is their versatility. They can be used to connect a wide range of audio devices, including guitars, keyboards, microphones, speakers, and many more. Jack cables are widely used in the music industry, recording studios, and even in everyday consumer electronics.


When it comes to jack cables, there are various types available, each designed for specific purposes. The most common type is the 1/4-inch jack, also known as the TS (Tip-Sleeve) connector. This type of jack cable is commonly used for instruments like electric guitars and keyboards. Another popular type is the 3.5mm jack, also known as the TRS (Tip-Ring-Sleeve) connector, which is commonly found in headphones and mobile devices.


It is essential to choose the right type of jack cable for your specific needs to ensure optimal audio quality and compatibility. Some jack cables come with gold-plated connectors to improve conductivity and reduce signal loss. Additionally, shielded jack cables help minimize interference and noise, especially in professional audio setups.

Types of Jack Cables and Their Uses

There are several types of jack cables available, each with its own unique characteristics and applications.

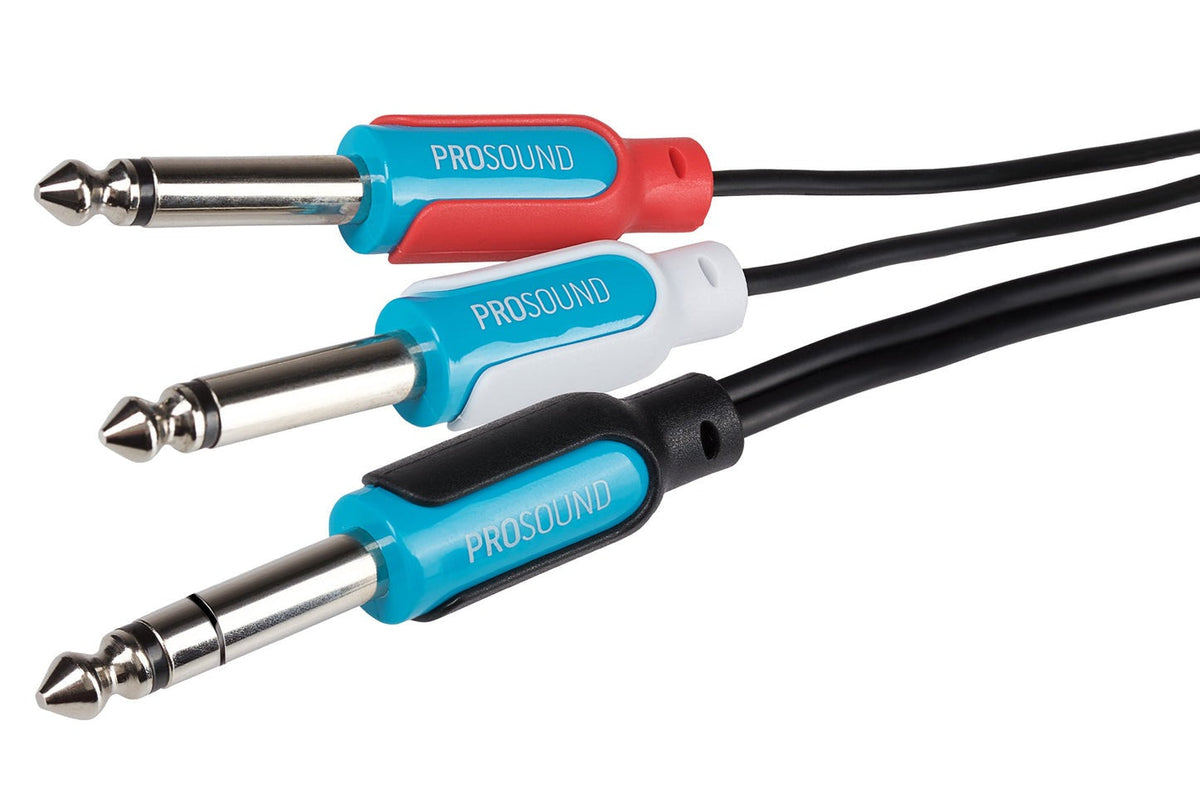

  1. TS Cable: This stands for Tip-Sleeve cable and is the most common type of jack cable. It consists of two conductors, with one carrying the audio signal (tip) and the other acting as the ground (sleeve). TS cables are commonly used for mono signals, such as electric guitars.

  2. TRS Cable: Also known as Tip-Ring-Sleeve cable, TRS cables have an additional conductor, the ring, positioned between the tip and sleeve. TRS cables are used for stereo signals and balanced audio connections.

  3. Instrument Cable : Instrument cables are similar to TS cables and are commonly used to connect instruments like electric guitars, basses, and keyboards to amplifiers or other audio equipment. They typically use TS connectors.

  4. Patch Cables : Patch cables are short cables used to connect audio equipment within a rack or close proximity setup. They often come with various connectors, including TS, TRS, RCA, and XLR, depending on the equipment being connected.

  5. Adapter Cables : These cables are used to convert between different connector types. For example, an adapter cable might convert from XLR to TRS or from RCA to TS.

Exploring Different Jack Plug Sizes

Jack cables come in various connector sizes, commonly referred to as "jacks". The most commonly used jack plug sizes are 1/4 inch (6.35mm) and 3.5mm.


Th1/4 inch jack, also known as the 6.35mm or "big" jack, is commonly used in professional audio applications, such as amplifiers, mixers, and studio equipment. It provides a sturdy connection and is known for its durability.

The 3.5mm jack, also known as the 1/8 inch jack, "mini" or "aux" jack, is the standard connector size used in consumer electronics, such as smartphones, headphones, laptops, and portable audio devices. It is smaller in size and allows for easy connectivity on the go.


Another less common but still important connector size is the 2.5mm jack, which is commonly used in specific devices like some older cell phones and communication equipment. While not as prevalent as the 1/4 inch or 3.5mm jacks, the 2.5mm jack serves its purpose in more niche applications or where space is a concern.


It is important to note that while the connector sizes may vary, the underlying principles and functionality remain the same across all jack cables.

Jack Plugs

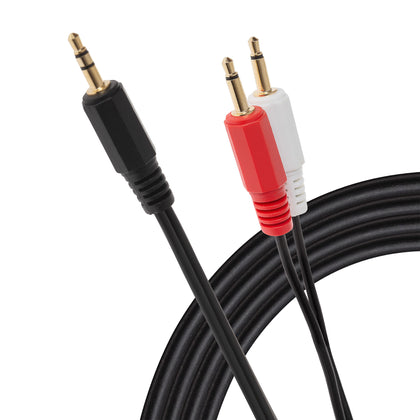

What Are "Poles" on Jack Plugs?

When referring to jack plugs, you may often come across the term "poles." Poles represent the number of conductors or connections present in a jack plug.


For example, a mono jack plug has a single pole, as it has one conductor for the audio signal and one for the ground connection. This type of plug is commonly used for instruments like electric guitars, where only one audio channel is needed. On the other hand, a stereo jack plug has two poles, with one conductor for the left audio channel, one for the right audio channel, and one for the ground connection. Stereo jacks are typically used in headphones, speakers, and audio equipment that require separate left and right audio signals.


Furthermore, there are also jack plugs with even more poles, such as those used for TRRS connections. TRRS stands for Tip, Ring, Ring, Sleeve, and these jacks have four poles. They are commonly found in headphones with built-in microphones, allowing for audio playback and microphone input through a single plug. Understanding the different types of jack plugs and their corresponding poles is crucial for ensuring compatibility and optimal audio performance in various devices.


Understanding the number of poles on a jack plug is important when selecting the appropriate cable for your requirements, as using the wrong plug could result in audio signal loss or distortion.

How to Choose the Right Jack Cable for Your Needs

With a wide range of jack cables available, choosing the right one for your needs may seem daunting. However, by considering a few key factors, you can make an informed decision.


1. Consider the intended application: Determine what devices you need to connect and the type of audio signals you will be working with. This will help you choose between mono, stereo, or balanced cables.


2. Think about connector sizes: Check the inputs and outputs of your devices to determine whether you require a 1/4 inch or 3.5mm jack cable.


3. Quality matters: Invest in cables made from high-quality materials to ensure optimal signal transmission and durability. Look for cables with gold-plated connectors for better conductivity and corrosion resistance.


4. Length and flexibility: Consider the length of the cable you need for your setup and ensure it offers sufficient flexibility. Avoid excessive cable lengths, as they can introduce signal loss and interference.


5. Shielding for interference reduction: When choosing a jack cable, consider the level of shielding it provides. Shielding helps reduce interference from external sources, resulting in cleaner audio signals. Look for cables with braided shielding or foil shielding for better protection against electromagnetic interference.


6. Durability for long-term use: If you plan to use the jack cable frequently or in demanding environments, opt for cables with reinforced connectors and durable outer jackets. This will ensure that your cables can withstand the rigors of regular use without compromising signal quality.

Tips for Properly Maintaining Your Jack Cables

Proper maintenance of your jack cables is essential to ensure optimal performance and longevity. Here are some tips to help you take care of your cables:


  1. Coiling: When not in use, always coil your cables properly to avoid knots and kinks. This helps prevent damage to the internal conductors.

  2. Avoid excessive pulling: Pulling on the cable instead of the plug can strain the connections and weaken the cable over time. Always grip the plug firmly when unplugging.

  3. Store them properly: Invest in cable wraps or organizers to keep your cables neatly organized and protected from tangles or accidental damage.

  4. Regularly inspect for damage: Check your cables for any signs of wear and tear, such as frayed connectors or exposed wires. Replace damaged cables to prevent audio signal loss or electrical hazards.

  5. Keep them clean: Wipe your cables and connectors regularly with a clean, dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners, as they can damage the cables.

Additionally, it's important to consider the environment in which you use your jack cables. Extreme temperatures, humidity, and exposure to liquids can all impact the performance and lifespan of your cables. Store them in a cool, dry place away from direct sunlight and moisture to prevent degradation of the cable materials.

When transporting your cables, make sure to protect the connectors by using protective caps or covers. This will prevent dust and dirt from accumulating in the connectors, which can affect the quality of the audio signal. It's also a good idea to invest in high-quality cables with durable outer jackets to provide better protection against physical damage and interference.

The Future of Jack Cables in Audio Technology

As technology evolves, we are witnessing a shift toward wireless audio solutions. Bluetooth and Wi-Fi-enabled devices are becoming increasingly popular, reducing the reliance on traditional jack cables. However, jack cables continue to remain relevant, especially in professional audio settings where reliability and quality are critical.

Manufacturers are also constantly improving jack cable designs, introducing features such as reinforced connectors, tangle-free cables, and enhanced shielding to ensure better signal integrity and durability.

While the future may bring advancements in wireless connectivity, jack cables will likely remain a staple in the audio industry for years to come.

One of the key advantages of jack cables is their compatibility with a wide range of audio devices, from guitars and microphones to headphones and speakers. This versatility has contributed to the enduring popularity of jack cables among musicians, audio engineers, and consumers alike.

Moreover, the analog nature of jack cables provides a direct, unaltered signal transmission, which is preferred by many audiophiles and professionals for its perceived superior sound quality compared to wireless alternatives.

Despite the convenience and flexibility offered by wireless technologies, the reliability and consistency of a physical connection provided by jack cables make them indispensable in critical applications where dropouts or interference are unacceptable.

FAQ

Here are some frequently asked questions about jack cables:

  • Can I use a TRS cable for mono signals?

Yes, you can use a TRS cable for mono signals by connecting the tip and sleeve together. However, using a TS cable is recommended for mono signals as it provides a simpler and more cost-effective solution.


  •  What is the difference between balanced and unbalanced cables?

Unbalanced cables have two conductors, whereas balanced cables have three conductors. Balanced cables help reduce noise and interference by cancelling out any audio signals that get picked up along the cable length.


  •  Are gold-plated connectors necessary for good audio quality?

Gold-plated connectors offer improved conductivity and corrosion resistance, but they are not necessarily required for good audio quality. High-quality connectors without gold plating can still deliver excellent audio performance.


  •  Can I connect a 1/4 inch jack cable to a 3.5mm jack socket?

Yes, you can use an adapter to connect a 1/4 inch jack cable to a 3.5mm jack socket. Adapters are widely available and allow for seamless connectivity between different connector sizes.


Now that you have a comprehensive guide to jack cables and plugs, you can confidently navigate the world of audio connectivity. Whether you're setting up your home theatre system or preparing for a live performance, understanding the different types, sizes, and proper maintenance of jack cables will ensure a smooth and reliable audio experience. So go ahead, connect with confidence, and let the music flow!

Jack cables enable audio signal transmission through plugs inserted into corresponding sockets, crucial for connecting various audio devices.

Connector sizes commonly include 1/4 inch (6.35mm) for professional use and 3.5mm for consumer electronics, with 2.5mm for niche applications.

Gold-plating and shielding can be used to enhance conductivity and reduce interference.

Jack plugs vary in poles, determining the number of conductors, crucial for mono, stereo, or TRRS connections.

Factors for choosing the right cable include application, connector size, quality, length, shielding, and durability, with proper maintenance ensuring longevity and optimal performance.
