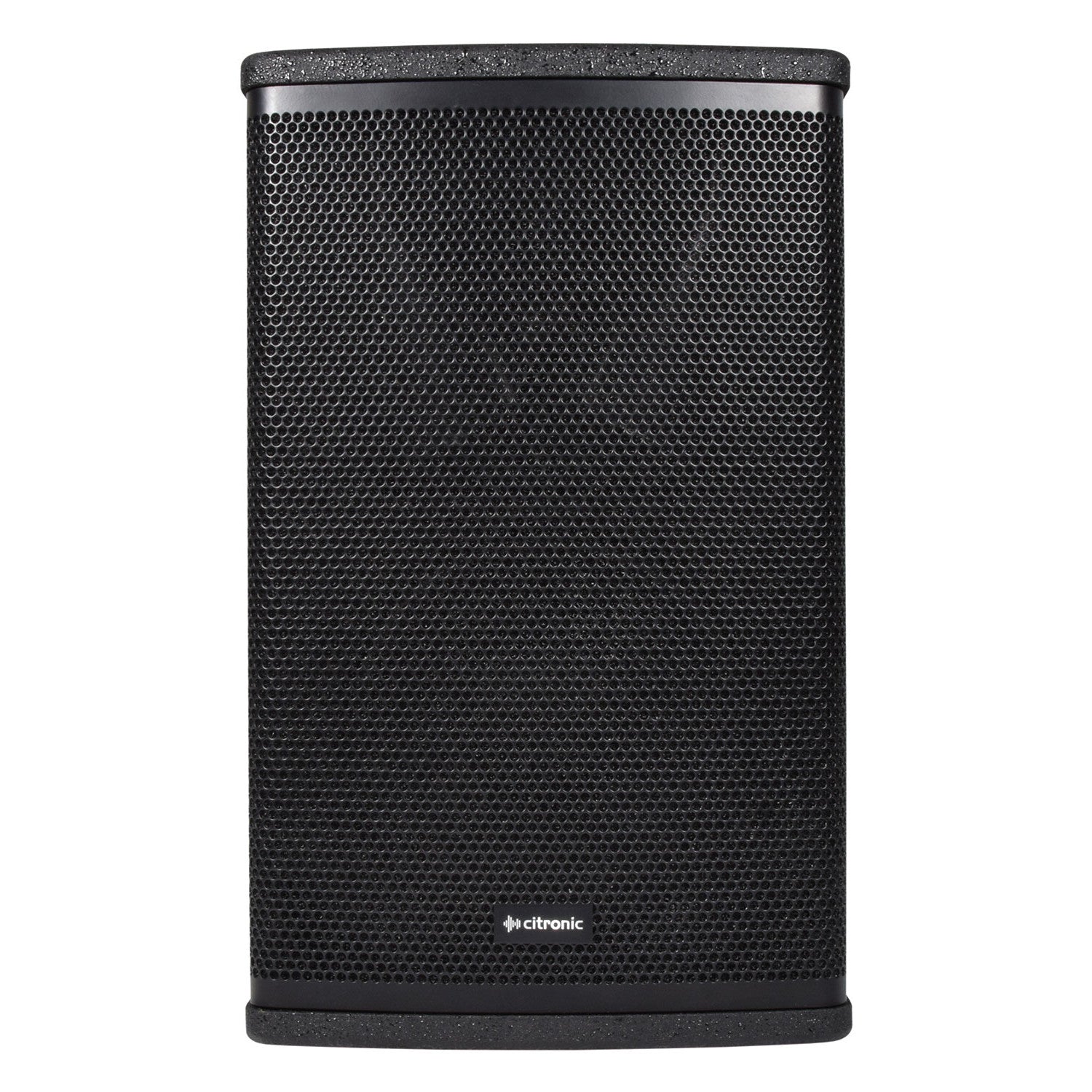

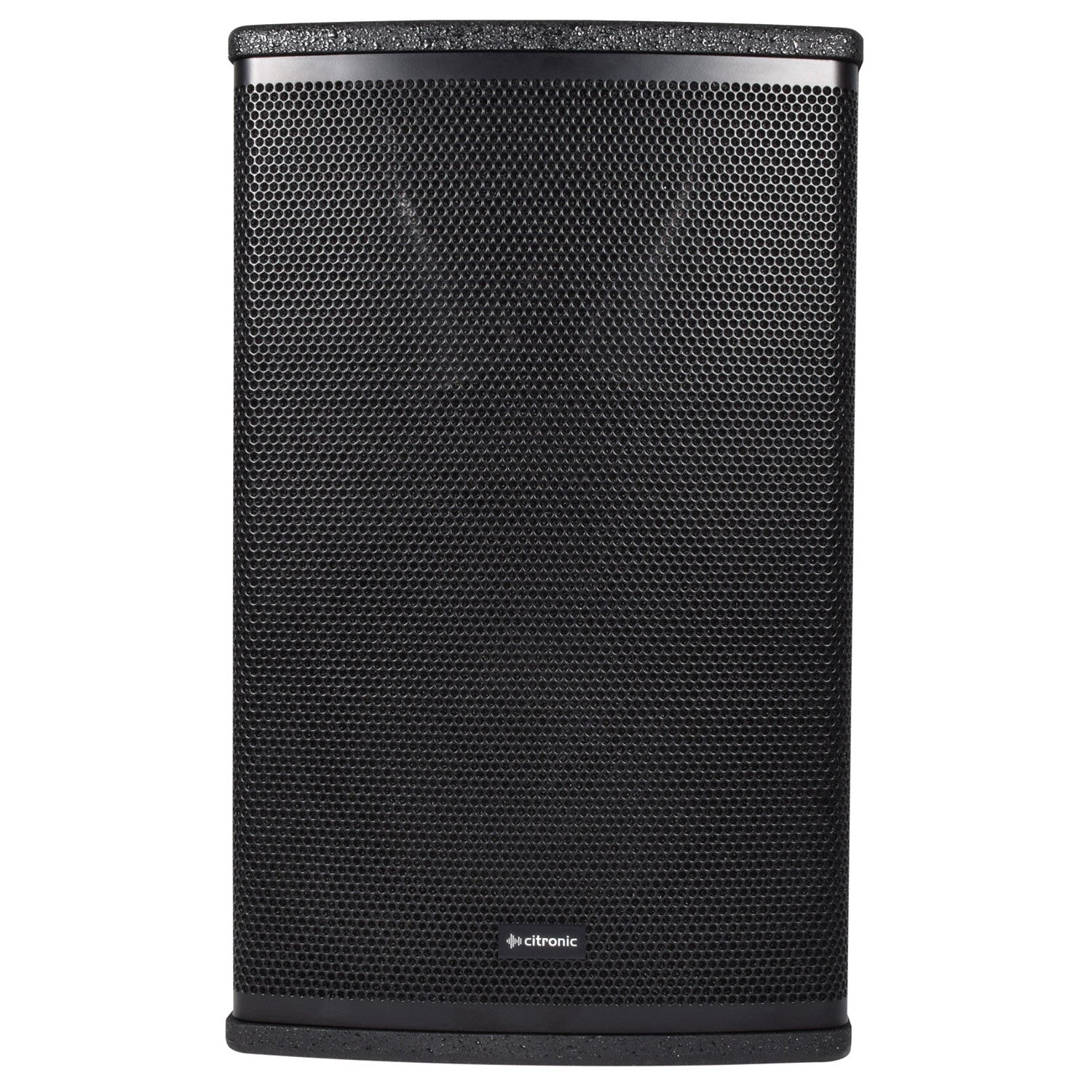

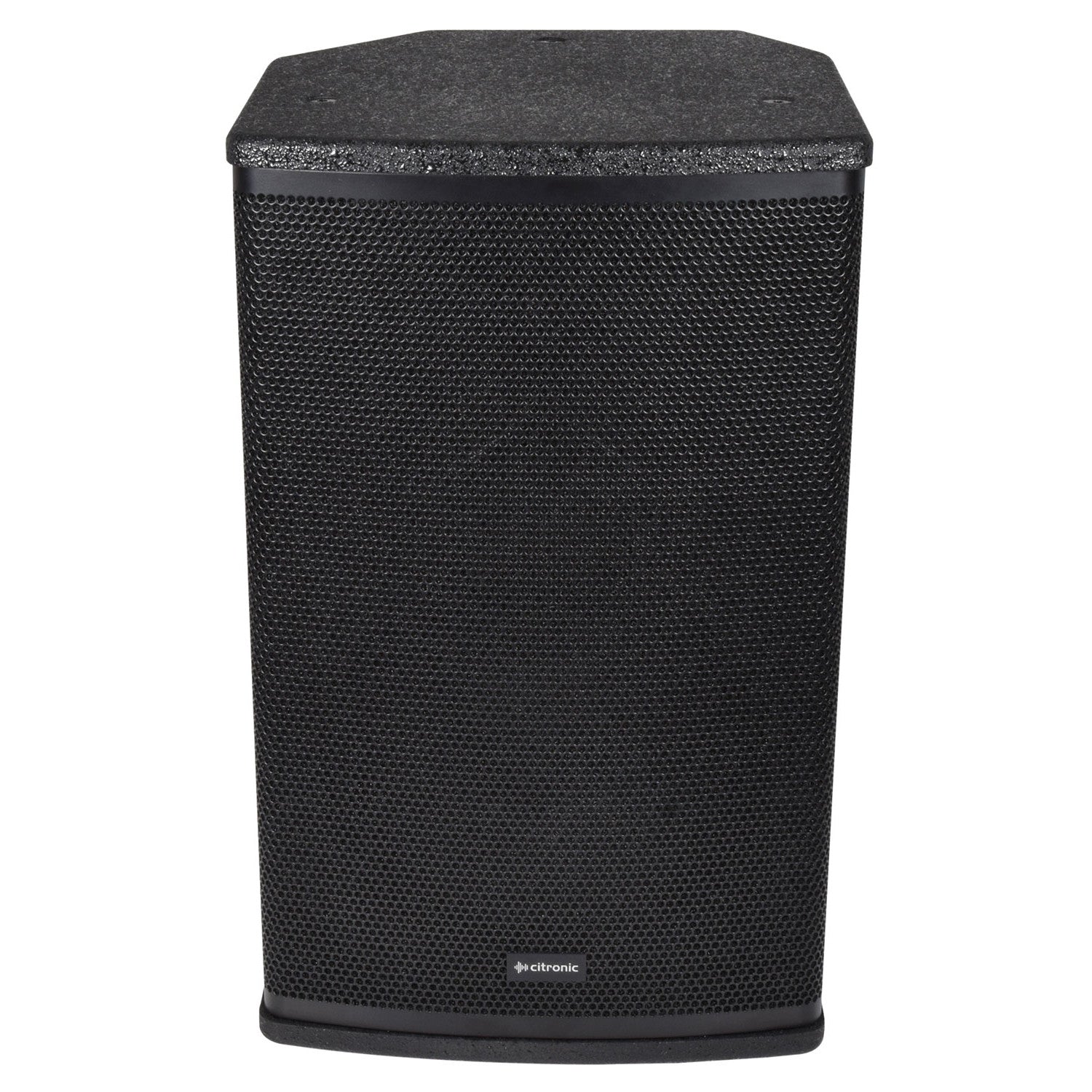

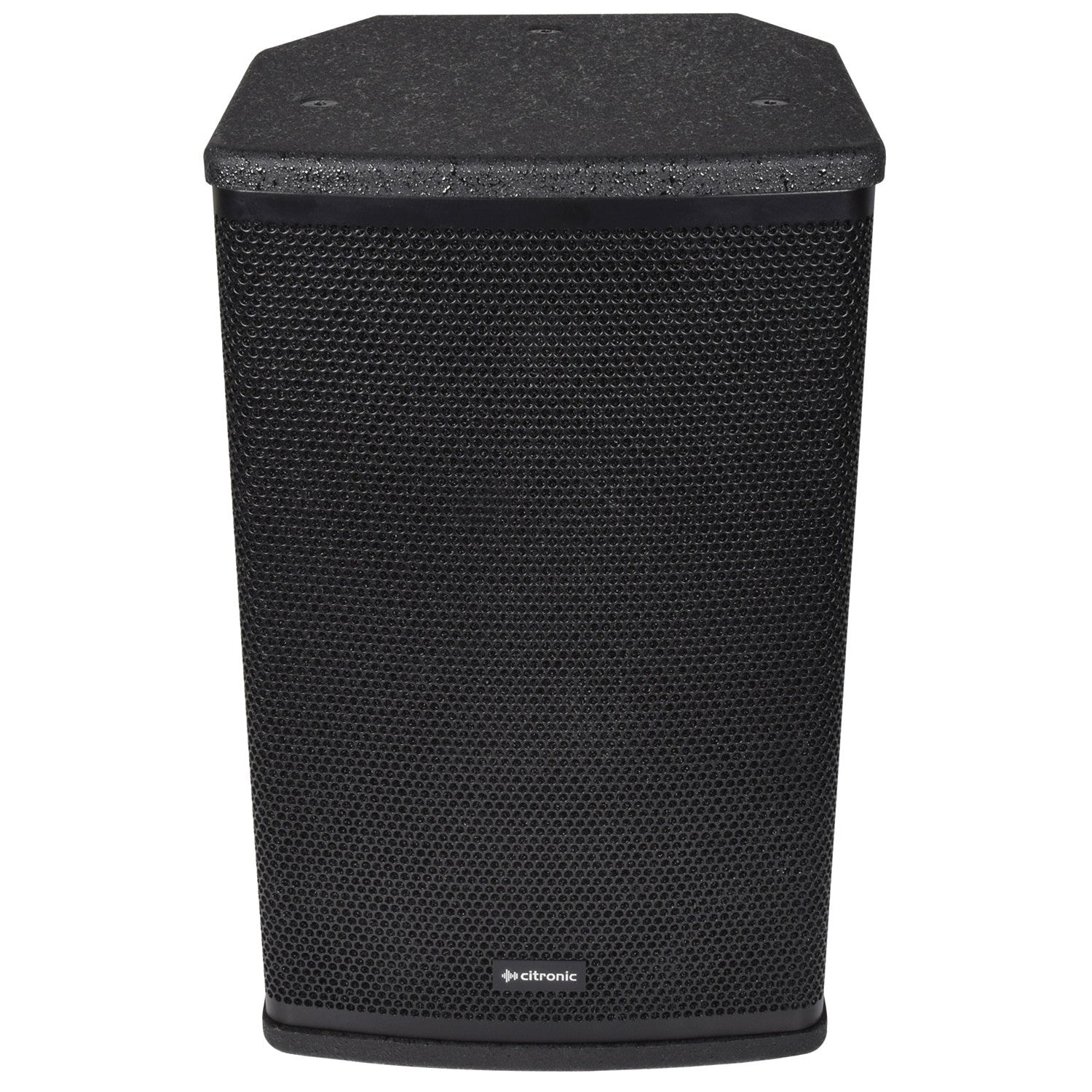

Citronic CUBA Full Range Wooden PA Cabinet

About this product

The Citronic CUBA Full Range Wooden PA Cabinet is a premium full-range passive speaker cabinet with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression driver combine with the tuned enclosure to deliver a balanced output of all frequencies. The rear panel has 2 parallel inputs for Speakon connection, also enabling linking onto additional speakers. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Recommended for use with Citronic PLX, D and H-series amplifiers for a wide range of professional high power sound reinforcement situations.

Hard-wearing polyurea cabinet coating

Supplied with a U-bracket

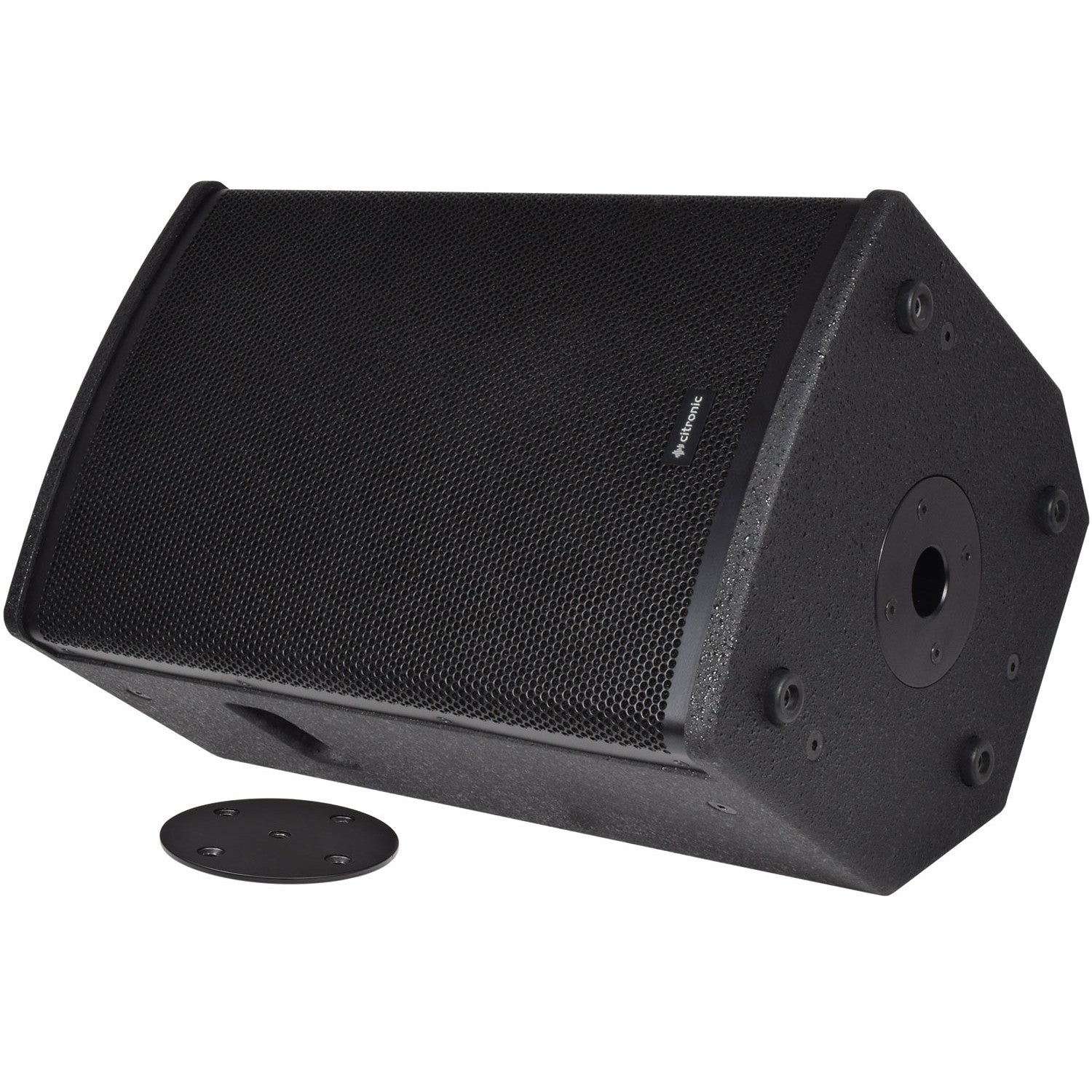

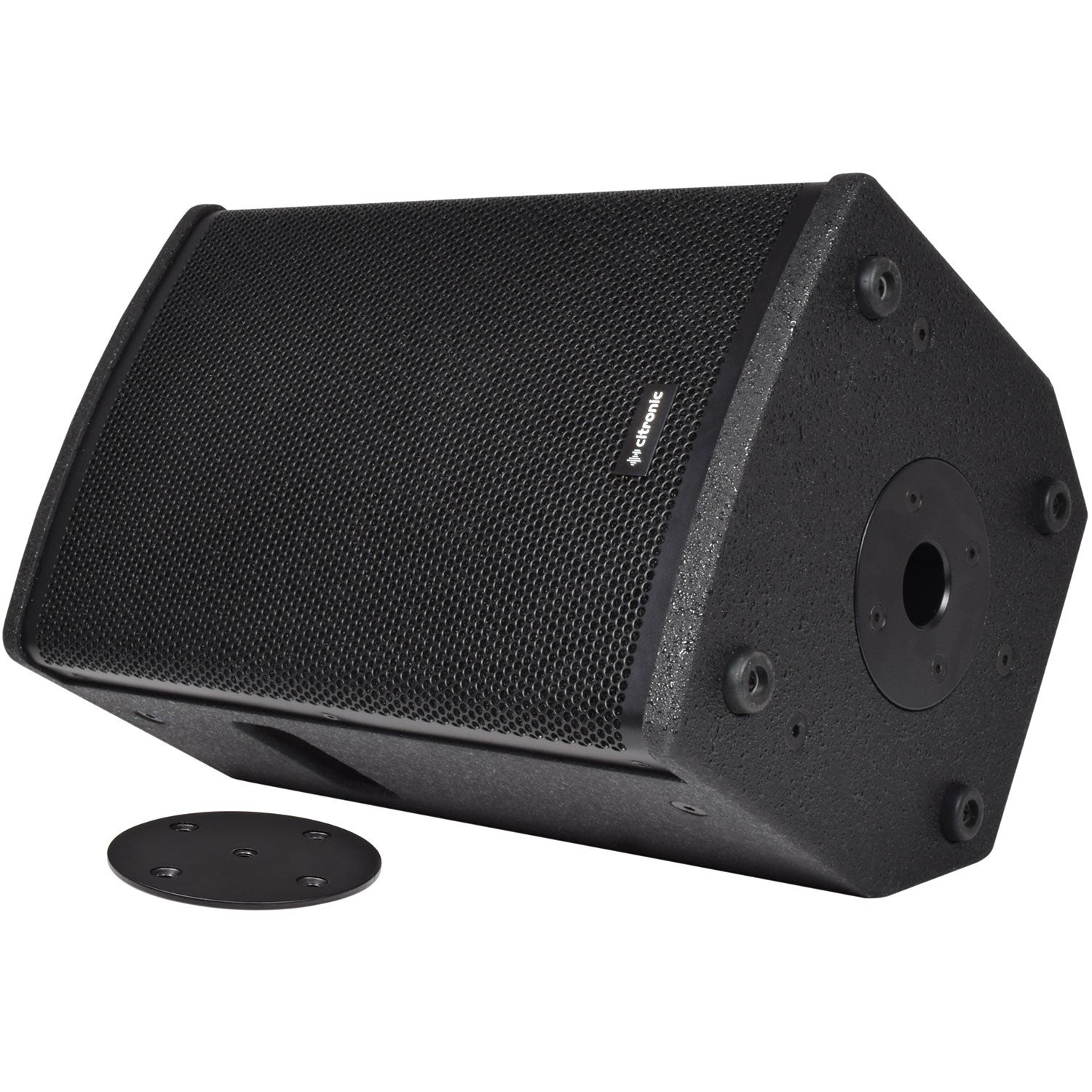

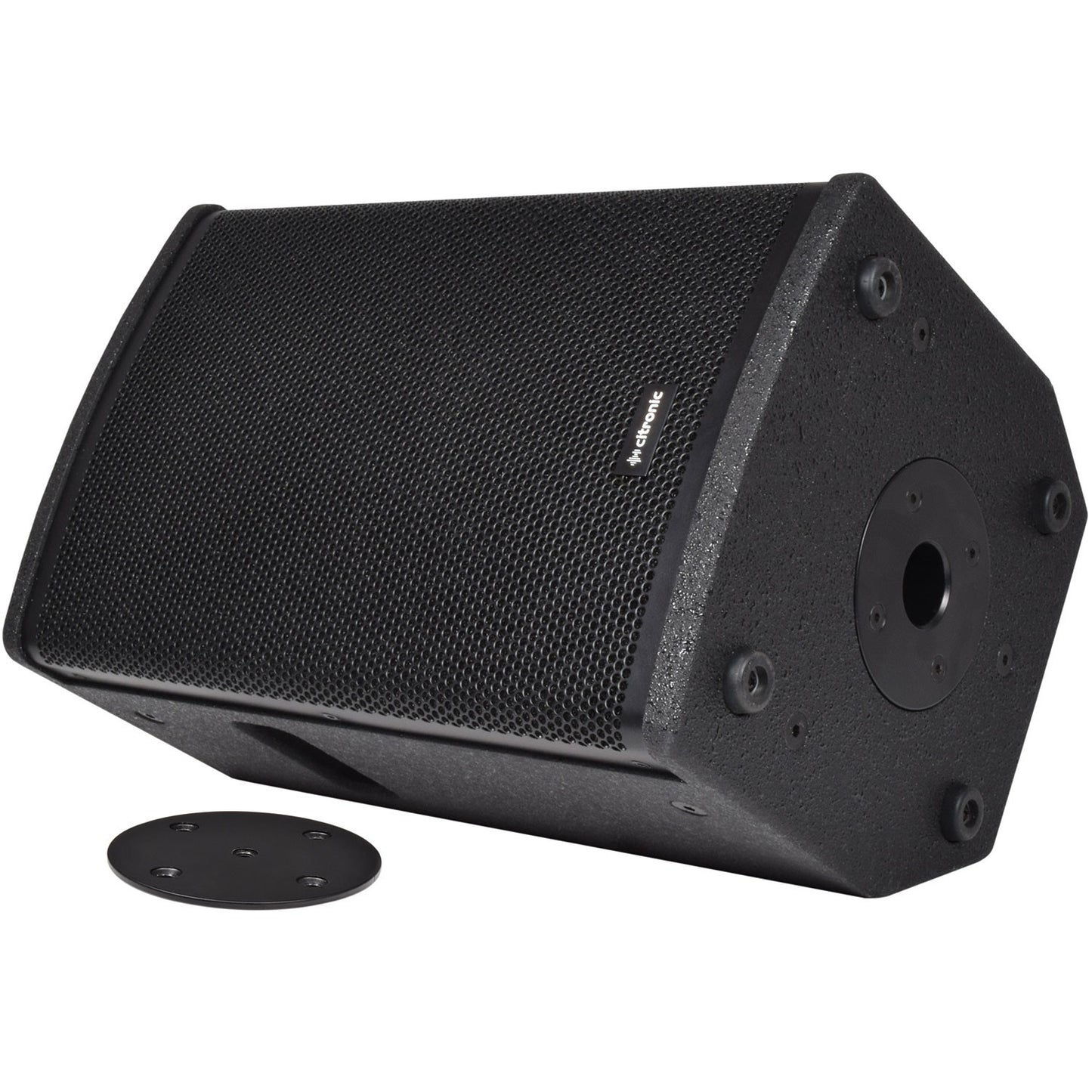

35mm pole mount socket and M8 flying points

Custom designed high power LF and HF drivers

Specifications

Weight: 10.0kg / 12.5kg

Dimensions: 435 x 265 x 265mm / 507 x 313 x 307mm

HF dispersion: 100°/50° x 55°

Max. SPL: 121.0dB / 122.5dB

Sensitivity: 95dB

Frequency response: 60Hz-20kHz

Power handling (max.): 500W / 540W

Power handling (RMS): 250W / 270W

HF driver: 35mmØ (1.35") Ti compression driver

Voice coil: 50mmØ (2")

Main driver: 200mmØ (8") / 250mmØ (10")

Colour: Black

Construction: Polyurea coated MDF + powder-coated steel grille

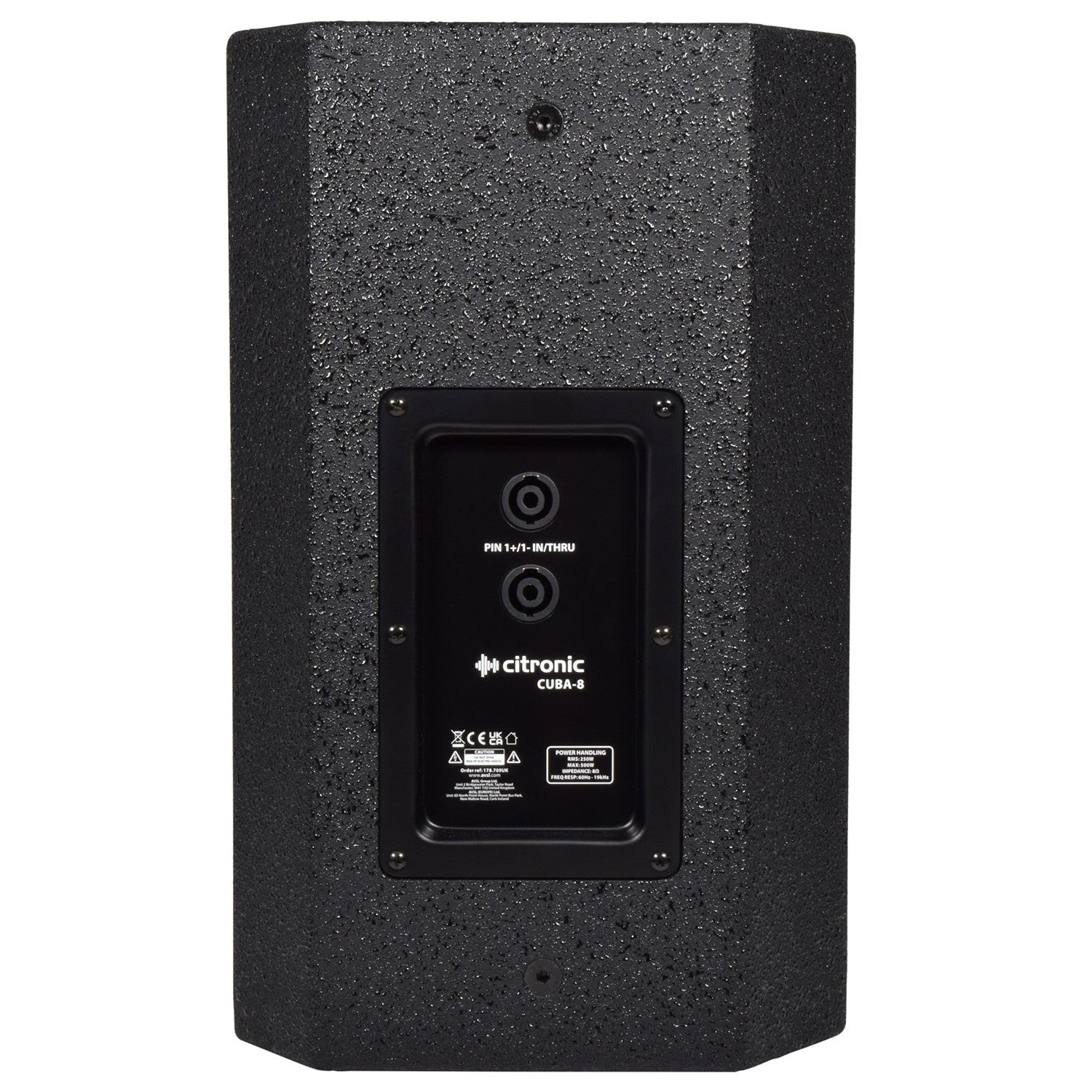

Input: 2 x parallel SPK socket

Impedance: 8 Ohms
